| Brand Name: | HX |
| Model Number: | HX-JSH |
| MOQ: | 1000 M |
| Price: | negotiatiable |
| Delivery Time: | 15-20days upon 1* 20GP |
| Payment Terms: | L/C, T/T |

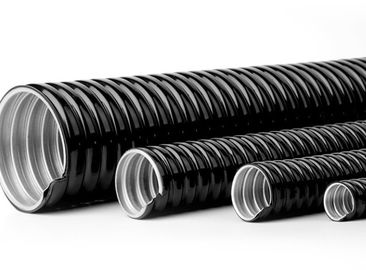

PVC coated galvanized flexible conduit , PVC coated flexible metal electrical conduit pipe
Product Parameters
Material: (inner layer) adopting
galvanized steel band with special
insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging) Color: Black and gray.
Working temperature: -10℃ ~ +80℃
Certification acquired: European Environmental Protection Certification
SGS: SH6134468/CHEM
Application:
It is used for wire protection of railways, engines, transportation system engineering, air conditioning, various machinery, automatic control equipment, power plants, chemicals, power distribution systems, communication systems, ships, buildings, factories and outdoor exposed locations.Pass the wire/cable through the pipe and use it in the model corresponding to the hose connector/joint.For computers/floor boxes, bathroom accessories and interiors under floor applicationsUsed to connect the machine to the controlUseful in areas affected by heat and sparks (casting, welding and others)Used as a mechanical protection for insulated cables and wires exposed to normal atmospheric conditionsWidely used in roads, bridges, railways, large-span prestressed concrete construction industry.
| SIZE | ID(mm) | OD(mm) | Bending Radius (mm) |
Lenght/roll m | ||
| MIN | MAX | MIN | MAX | |||
| 1/4" | 9.7 | 10.2 | 14.4 | 14.7 | 45 | 100 |
| 3/8" | 12.3 | 12.7 | 16.7 | 17.2 | 50 | 100 |
| 1/2" | 15.8 | 16.2 | 20.2 | 20.7 | 65 | 50 |
| 3/4" | 20.7 | 21.1 | 25.5 | 26.1 | 75 | 50 |
| 1" | 6.2 | 26.8 | 31.6 | 32.2 | 100 | 50 |
| 11/4" | 34.7 | 35.3 | 40.8 | 41.5 | 125 | 30 |
| 11/2" | 40 | 40.7 | 16.6 | 47.2 | 150 | 25 |
| 2" | 50.8 | 51.6 | 58.1 | 58.7 | 175 | 20 |
| 21/2" | 63 | 63.6 | 71.8 | 72.4 | 200 | 10 |
| 3" | 78 | 78.7 | 87.2 | 87.9 | 225 | 10 |
| 4" | 101.6 | 102.6 | 111.2 | 112.3 | 275 | 10 |
|
|
