4" Liquid tight straight connecotr , Straight Flexible Conduit And Fittings Liquid Tight Connector
UL LISTED Straight liquid -tight connectors are used to terminate and seal liquid-tight flexible metal and liquid -tight flexible Nonmetallic Type B conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure,connector can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.
1) liquid tight angle connector
2) Liquid Tight Connector 90 angle
3) Full range size from 3/8" to 4"
·Liquid tight angle connector
·Available size: 3/8 inch to 4 inch
·Zinc Die Casting
·For use with both metallic liquid tight conduit and nonmetallic liquid tight conduit
·Furnished with locknut and sealing ring

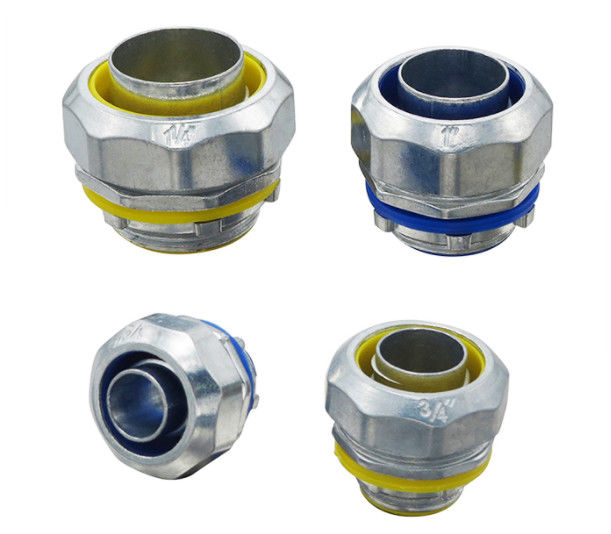

·Yellow and Blue two kinds of gasket available
Packaging & Delivery
Packaging Details1. Common Packing : Inner plastic bag + Export Carton.
2. Customized Packing : OEM Label , Inner Box , Zip Lock Bag , etc. , as per requirements.PortNingbo or Shanghai
| Cat# | Size | d1 | d2 | L | |
| LTS | -012 | 3/8" | 16.5 | G1/2" | 17 |
| LTS | -050 | 1/2" | 18.5 | G1/2" | 19 |
| LTS | -075 | 3/4" | 24 | G3/4" | 23.3 |
| LTS | -100 | 1" | 30 | G1" | 25 |
| LTS | -125 | 11/4" | 38.8 | G11/4" | 34 |
| LTS | -150 | 11/2" | 45 | G11/2" | 36.2 |
| LTS | -200 | 2" | 56.4 | G2" | 43 |
| LTS | -250 | 21/2" | 74 | G21/2" | 74 |
| LTS | -300 | 3" | 90 | G3" | 85 |
| LTS | -400 | 4" | 115 | G4" | 9 |
