| Brand Name: | HX |
| Model Number: | LTS |
| MOQ: | 2000 pcs |
| Price: | negotiatiable |
| Delivery Time: | within 15 days upon 20 GP |

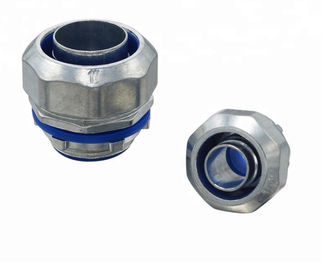

Zinc Die Cast Liquid Tight Connectors straight , Liquid tight straight connector
1. Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
2. May be used indoors and in concrete-tight applications when taped
3. Body and locknut made with die-cast zinc alloy
4. Set screw made with zinc-plated steel
5. Tri-Drive screw head design for use with Phillips, slotted and square screwdrivers
6. Screw thread is designed to not vibrate loose
7. Reversible locknut designed to cut through protective coatings on boxes & enclosures
USE:Straight liquid-tight connectors are used to terminate and seal Liquid-Tight Flexible Metal and Liquid-Tight Flexible Nonmetallic Type B Conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure.Connectors can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.
Furnished with Sealing Ring.
Suitable for Grounding
| Cat# | Size | d1 | d2 | L | |
| LTS | -012 | 3/8" | 16.5 | G1/2" | 17 |
| LTS | -050 | 1/2" | 18.5 | G1/2" | 19 |
| LTS | -075 | 3/4" | 24 | G3/4" | 23.3 |
| LTS | -100 | 1" | 30 | G1" | 25 |
| LTS | -125 | 11/4" | 38.8 | G11/4" | 34 |
| LTS | -150 | 11/2" | 45 | G11/2" | 36.2 |
| LTS | -200 | 2" | 56.4 | G2" | 43 |
| LTS | -250 | 21/2" | 74 | G21/2" | 74 |
| LTS | -300 | 3" | 90 | G3" | 85 |
| LTS | -400 | 4" | 115 | G4" | 9 |
|
|
