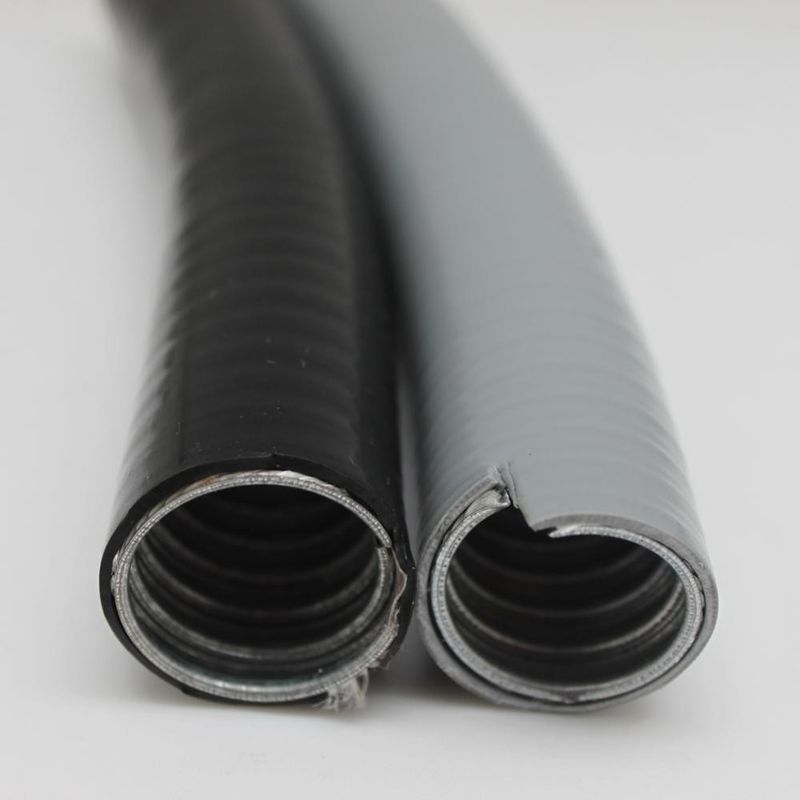

Size 3/4" JSB Liquid tight conduit , Liquid-tight Smooth PVC Coated Metal Conduit
Liquid tight conduit:
1. material:galvanized steel strip, liquid tight pvc coated smoothly,corrosion resistant
2. productiion of various national standard metal hose ,conduits
3. different specification from 3/8 to 4",
widely applied in protecting various wires ,cables and pipelines and the metal joints
| SIZE | ID(mm) | OD(mm) | Bending Radius (mm) |
Lenght/roll m | ||
| MIN | MAX | MIN | MAX | |||
| 1/2" | 15.8 | 16.2 | 20.8 | 21.3 | 85 | 50 |
| 3/4" | 20.7 | 21.1 | 26.3 | 21.6 | 100 | 50 |
| 1" | 6.2 | 26.8 | 32.7 | 33.4 | 150 | 50 |
| 11/4" | 34.7 | 35.3 | 41.4 | 42.2 | 180 | 20 |
| 11/2" | 40 | 40.7 | 47.4 | 48.3 | 220 | 20 |
| 2" | 50.8 | 51.6 | 59.4 | 60.3 | 250 | 20 |
| 21/2" | 63 | 63.6 | 72.1 | 73 | 300 | 10 |
| 3" | 78 | 78.7 | 87.9 | 88.9 | 450 | 10 |
| 4" | 101.6 | 102.6 | 113.2 | 114.3 | 600 | 5 |
|
Product material:
|
(inner layer) adopting hot-dipped galvanized steel band with special anticorrosion treatment ;(outer layer) adopting PVC raw material (anti-UV, anti-aging).
|
|
Working temperature:
|
-10℃ ~ +80℃,instantaneously can be +100℃,can be customized high temperature and low temperature resistant products.
|
|
Certification:
|
RoHS,CE,flame retardant certification FV-0.
|
|
Color:
|
Black,Grey
|
|
Property:
|
1,excellent waterproof ,insulation and tensile strength;
|
|
2,PVC surface thickened layer, smooth appearance ,and with flame retardant;
|
|
|
3,Square locked structure increase the tensile strength,not easily broken or deformed;
|
|
|
4,internal smooth structure is very easy for the entry of wire and cable.
|
|
|
Usage:
|
protecting wires/cables and provide insulation and waterproof performance.
|
|
Application:
|
widely used in robots,aerospace,power generation,high-speed rail subway,railway equipment, shipbuilding,chemical industry,communication system,engineering equipment installation,industrial automation equipment,machine tool equipment,lighting equipment,electrical insulation protection system of indoor and outdoor environment of wire and cable protection.
|
|
How to use:
|
Put the wires/cables through conduit before matching the correspondent type of LNE-DPJ connectors.
|
