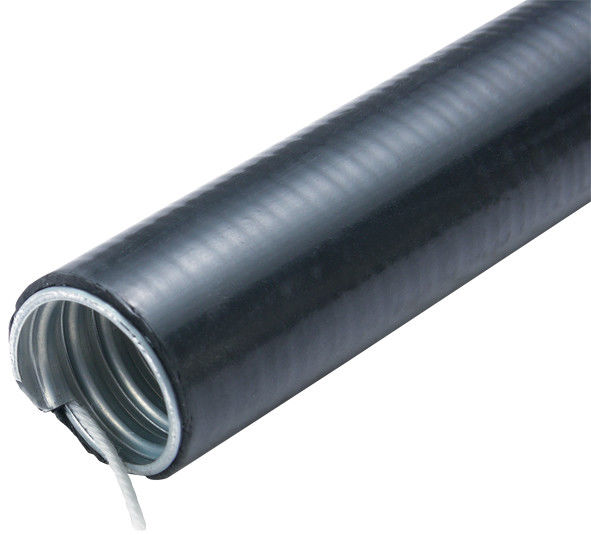

UL listed Liquid tight conduit, size 3/4" Steel liquid tight conduit
Liquid tight conduit:
1. material:galvanized steel strip, liquid tight pvc coated smoothly,corrosion resistant
2. productiion of various national standard metal hose ,conduits
3. different specification from 3/8 to 4",

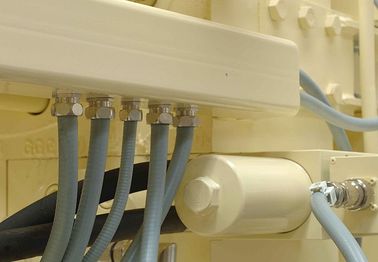

widely applied in protecting various wires ,cables and pipelines and the metal joints
| SIZE | ID(mm) | OD(mm) | Bending Radius (mm) |
Lenght/roll m | ||
| MIN | MAX | MIN | MAX | |||
| 1/2" | 15.8 | 16.2 | 20.8 | 21.3 | 85 | 50 |
| 3/4" | 20.7 | 21.1 | 26.3 | 21.6 | 100 | 50 |
| 1" | 6.2 | 26.8 | 32.7 | 33.4 | 150 | 50 |
| 11/4" | 34.7 | 35.3 | 41.4 | 42.2 | 180 | 20 |
| 11/2" | 40 | 40.7 | 47.4 | 48.3 | 220 | 20 |
| 2" | 50.8 | 51.6 | 59.4 | 60.3 | 250 | 20 |
| 21/2" | 63 | 63.6 | 72.1 | 73 | 300 | 10 |
| 3" | 78 | 78.7 | 87.9 | 88.9 | 450 | 10 |
| 4" | 101.6 | 102.6 | 113.2 | 114.3 | 600 | 5 |
