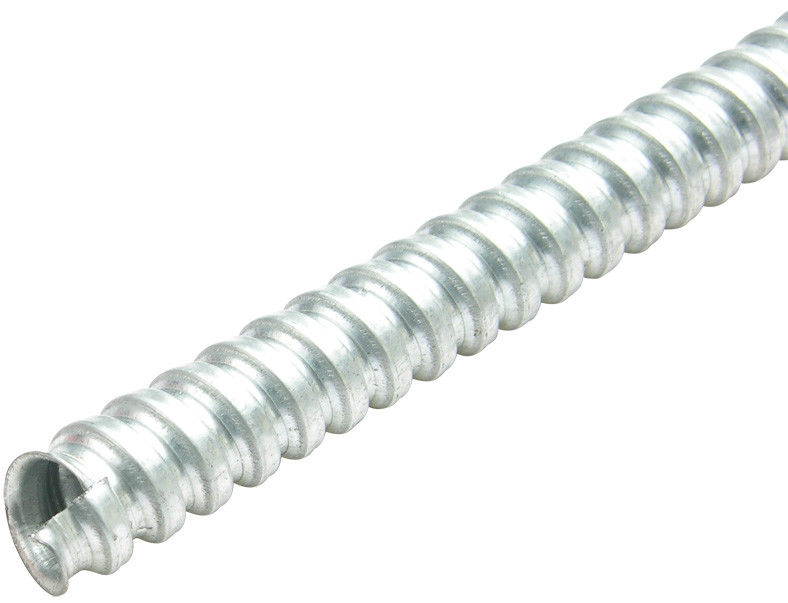

Silver Flexible Electrical Tubing P4 Single Locking , Steel Flexible GI Conduit

1000 M
MOQ
negotiatiable
Price
Silver Flexible Electrical Tubing P4 Single Locking , Steel Flexible GI Conduit
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Galvanized Steel
Size: 1/4"-4"
Surface: Hot Dip Galvanized
Packing: Customizable
Feature: High Flexibility
Structure: Squarelock+Interlocke
High Light:

flexible metal cable conduit

,

outdoor electrical wire conduit

Basic Infomation
Place of Origin: CHINA
Brand Name: HX
Certification: ISO9001, SGS
Model Number: HX-P3
Payment & Shipping Terms
Packaging Details: plastic film or carton packing
Delivery Time: 15-20days upon 1* 20GP
Payment Terms: L/C, T/T
Supply Ability: 200000 Meter/ month
Product Description

Galvanized Flexible Conduit P4 single locking, steel flexible conduit.GI conduit



Material:Galvanized Steel Strip(Squarelocked)
Protection degree:IP68
Flame-retardant:V0(UL94)
Temperature range:-40°C to +80°C,short time to +100°C
CE Approved
Application:Railway, vehicle, traffic system project, aircondition .Various machine tool and machines. Automatic control equipment, electric power plants. Petroleum, chemical industry, Transmission and distribution system, communication system, base station



SIZE ID(mm) OD(mm) Bending
Radius (mm)
Lenght/roll m
MIN MAX MIN MAX
1/2" 15.80 16.20 20.80 21.30 85 100
3/4" 20.70 21.10 26.30 21.60 100 100
1" 6.20 26.80 32.70 33.40 150 50
11/4" 34.70 35.30 41.40 42.20 180 25
11/2" 40.00 40.70 47.40 48.30 220 25
2" 50.80 51.60 59.40 60.30 250 20
21/2" 63.00 63.60 72.10 73.00 300 10
3" 78.00 78.70 87.90 88.90 450 10
4" 101.60 102.60 113.20 114.30 600 10







Silver Flexible Electrical Tubing P4 Single Locking , Steel Flexible GI Conduit 0
