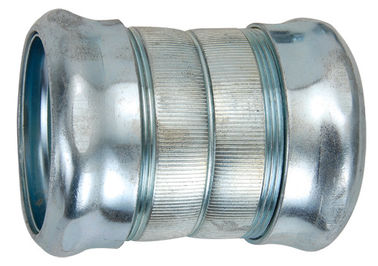

Steel EMT coupling compression type, EMT compression coupling steel
Description:
compression couplings are used to bond EMT thinwall conduits to electrical junction boxes or enclosures. The steel construction ensures mechanical protection and the conduit to the designated electrical junction box or enclosure. In damp locations, compression couplings are also of excellent corrosion protection with zinc electroplated. With labor saving design, electrician can quickly tighten these connectors on EMT conduits.
Features:
- Steel
- Zinc Electro-Plated
- Concrete-Tight
- Suitable for applications above 600V
| Cat# | Size | D1 | D2 | L | |
| CCP-S | -050 | 1/2" | 18.5 | 27.5 | 45 |
| CCP-S | -075 | 3/4" | 24 | 34.5 | 52 |
| CCP-S | -100 | 1" | 30.2 | 40.5 | 60 |
| CCP-S | -125 | 11/4" | 39 | 50 | 72 |
| CCP-S | -150 | 11/2" | 44.8 | 56.5 | 85 |
| CCP-S | -200 | 2" | 56.5 | 69 | 100 |
| CCP-S | -250 | 21/2" | 74 | 91.5 | 115 |
| CCP-S | -300 | 3" | 90.5 | 108.5 | 122 |
| CCP-S | -400 | 4" | 115.5 | 134.5 | 130 |
