| Brand Name: | HX |
| Model Number: | LTSP |
| MOQ: | 1000 pcs |
| Price: | negotiatiable |
| Delivery Time: | within 15 days upon 20 GP |

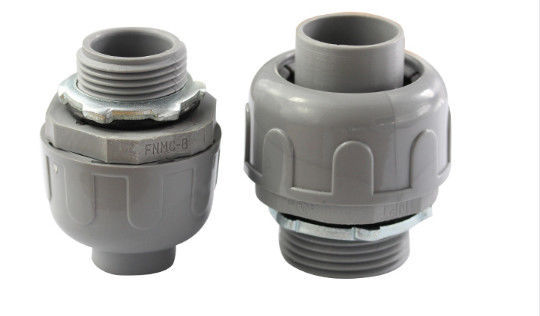

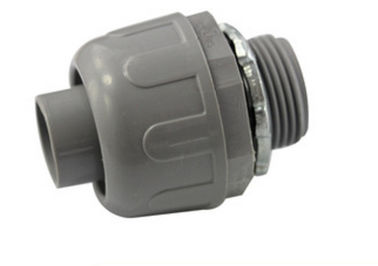

Plastic PA6 liquid tight straight hose connector , Plastic Liquid Tight Connector
Standard material: Nylon
.Standard finish: natural
.Tapered threaded male hub NPT
.Insulated or non-insulated
.Compact,slim diameter with small turning radius
.Furnished with steel locknut and sealing ring
.Liquidtight/raintight/oiltight suitable for wet locations
.Long ferrule prevents pullout and tight bend conduit pop-out
.To secure,ground and seal liquid tight metal flexible conduit to boxes and enclosures
.The fittings used in many industries,inlcude Petroleum,chemical,waste water threatment
| Catalog number | Trade size | Standard Packing |
| (pcs) | ||
| Straight liquid tight connector | ||
| PLT38 | 3/8" | 250 |
| PLT50 | 1/2" | 250 |
| PLT75 | 3/4" | 100 |
| PLT100 | 1" | 100 |
| PLY125 | 1-1/4" | 70 |
| PLT150 | 1-1/2" | 60 |
| PLT200 | 2" | 50 |
| PLT250 | 2-1/2" | 50 |
| PLT300 | 3" | 25 |
| PLT400 | 4" | 25 |
|
|
| Brand Name: | HX |
| Model Number: | LTSP |
| MOQ: | 1000 pcs |
| Price: | negotiatiable |
| Packaging Details: | plastic bag or inner carton/ outer standard Carton packing |
Plastic PA6 liquid tight straight hose connector , Plastic Liquid Tight Connector
Standard material: Nylon
.Standard finish: natural
.Tapered threaded male hub NPT
.Insulated or non-insulated
.Compact,slim diameter with small turning radius
.Furnished with steel locknut and sealing ring
.Liquidtight/raintight/oiltight suitable for wet locations
.Long ferrule prevents pullout and tight bend conduit pop-out
.To secure,ground and seal liquid tight metal flexible conduit to boxes and enclosures
.The fittings used in many industries,inlcude Petroleum,chemical,waste water threatment
| Catalog number | Trade size | Standard Packing |
| (pcs) | ||
| Straight liquid tight connector | ||
| PLT38 | 3/8" | 250 |
| PLT50 | 1/2" | 250 |
| PLT75 | 3/4" | 100 |
| PLT100 | 1" | 100 |
| PLY125 | 1-1/4" | 70 |
| PLT150 | 1-1/2" | 60 |
| PLT200 | 2" | 50 |
| PLT250 | 2-1/2" | 50 |
| PLT300 | 3" | 25 |
| PLT400 | 4" | 25 |
