Electrical Metal Conduit Pipe Fittings , 3 4 EMT Coupling Zinc Die Casting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: YUYAO CHINA
Brand Name: HX
Certification: UL ,ISO9001, SGS
Model Number: HX-SSCP
High Light:

electrical conduit couplings

,

rigid steel conduit fittings

Payment & Shipping Terms
Packaging Details: Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet ( customers' packing requiement accepted )
Delivery Time: 15 -20 Days upon 1*20GP
Payment Terms: L/C, T/T
Supply Ability: 200 Ton / Month
Specifications
Material: ZINC
Finish: POLISH
Size: 1/2"-4"
Type: Set Screw Type
Shape: Equal
Standard: UL
Product Description

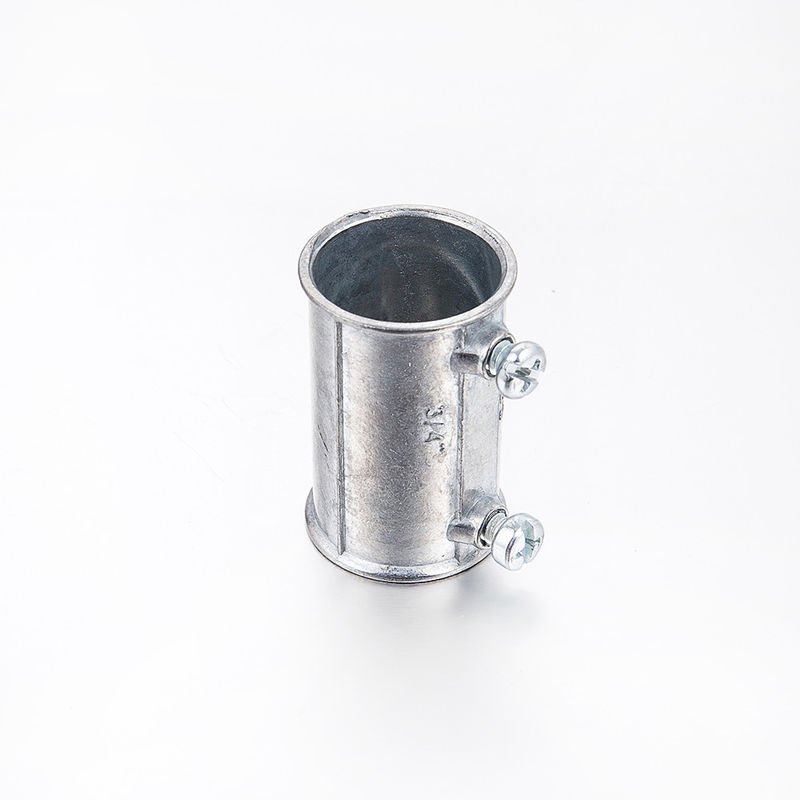

3/4" EMT coupling , EMT coupling set screw type , zinc die casting





zinc die-cast set-screw electrical couplings are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, set-screw couplings are of excellent corrosion protection with zinc electroplated. EMT set-screw couplings are made with a diverse combination screw head that can securely fasten conduit to designated electrical junction box or enclosure using a slotted Phillips, or Robertson head screw driver.



Features:
- Zinc Die Cast
- Concrete-Tight when taped
- Combo Head Set-Screw
- Suitable for applications above 600V
- Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits



Electrical Metal Conduit Pipe Fittings , 3 4 EMT Coupling Zinc Die Casting 0

Cat# Size d1 d2 L
SSCP-Z -050 1/2" 18.4 17 38
SSCP-Z -075 3/4" 24 22 43
SSCP-Z -100 1" 30 28 52
SSCP-Z -125 11/4" 38.8 37 62
SSCP-Z -150 11/2" 45 43 72.8
SSCP-Z -200 21/2" 56.3 54.7 86
SSCP-Z -250 2" 74 70 100
SSCP-Z -300 3" 90 86 114
SSCP-Z -400 4" 115 110 130









Electrical Metal Conduit Pipe Fittings , 3 4 EMT Coupling Zinc Die Casting 1
