| Brand Name: | HX |
| Model Number: | HX-SSCN-S |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Delivery Time: | 15 -20 Days upon 1*20GP |
| Payment Terms: | L/C, T/T |

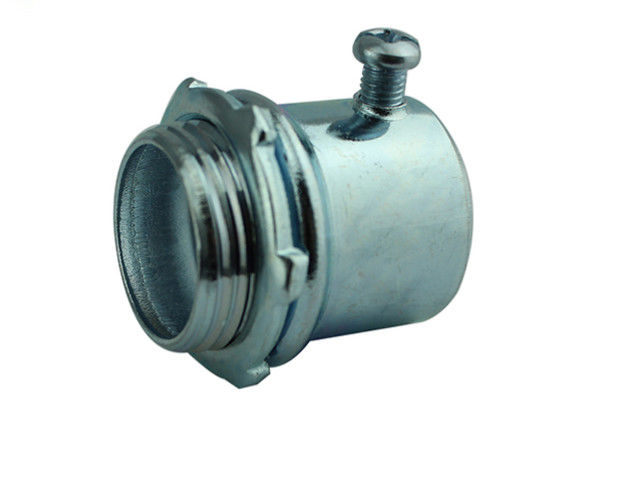

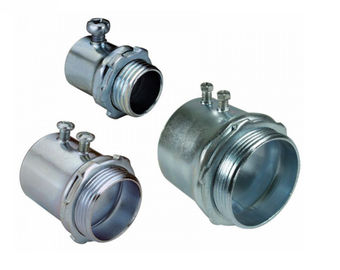

1 " EMT fittings , EMT connector steel , steel EMT connector set screw type
EMT steel connector: Joins steel EMT conduit to Electrical box and enclosure
• Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
• May be used indoors and in concrete-tight applications when taped
• Body and locknut made with die-cast zinc alloy
• Set screw made with zinc-plated steel
• Tri-Drive screw head design for use with Phillips, slotted and square screwdrivers
• Screw thread is designed to not vibrate loose
• Reversible locknut designed to cut through protective coatings on boxes & enclosures
• UL standard for safety
• Application type : EMT
• Electrical Product Type : Standard Fitting
| Cat# | Size | D | D2 | L | |
| SSCN-S | -050 | 1/2" | 18.5 | 21.5 | 35 |
| SSCN-S | -075 | 3/4" | 24 | 27 | 39 |
| SSCN-S | -100 | 1" | 30.2 | 34.2 | 43 |
| SSCN-S | -125 | 11/4" | 39 | 43 | 51 |
| SSCN-S | -150 | 11/2" | 44.8 | 48.8 | 62 |
| SSCN-S | -200 | 2" | 56.5 | 60.5 | 77 |
| SSCN-S | -250 | 21/2" | 74 | 80 | 86 |
| SSCN-S | -300 | 3" | 90.5 | 96.5 | 94 |
| SSCN-S | -400 | 4" | 115.5 | 121.5 | 107 |
|
| Brand Name: | HX |
| Model Number: | HX-SSCN-S |
| MOQ: | 2000 PCS |
| Price: | negotiatiable |
| Packaging Details: | Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet ( customers' packing requiement accepted ) |
| Payment Terms: | L/C, T/T |
1 " EMT fittings , EMT connector steel , steel EMT connector set screw type
EMT steel connector: Joins steel EMT conduit to Electrical box and enclosure
• Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
• May be used indoors and in concrete-tight applications when taped
• Body and locknut made with die-cast zinc alloy
• Set screw made with zinc-plated steel
• Tri-Drive screw head design for use with Phillips, slotted and square screwdrivers
• Screw thread is designed to not vibrate loose
• Reversible locknut designed to cut through protective coatings on boxes & enclosures
• UL standard for safety
• Application type : EMT
• Electrical Product Type : Standard Fitting
| Cat# | Size | D | D2 | L | |
| SSCN-S | -050 | 1/2" | 18.5 | 21.5 | 35 |
| SSCN-S | -075 | 3/4" | 24 | 27 | 39 |
| SSCN-S | -100 | 1" | 30.2 | 34.2 | 43 |
| SSCN-S | -125 | 11/4" | 39 | 43 | 51 |
| SSCN-S | -150 | 11/2" | 44.8 | 48.8 | 62 |
| SSCN-S | -200 | 2" | 56.5 | 60.5 | 77 |
| SSCN-S | -250 | 21/2" | 74 | 80 | 86 |
| SSCN-S | -300 | 3" | 90.5 | 96.5 | 94 |
| SSCN-S | -400 | 4" | 115.5 | 121.5 | 107 |
