2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant

Certification
Good quality EMT Conduit Fittings for sales
Good quality EMT Conduit Fittings for sales
I'm Online Chat Now

2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant

China 2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant supplier
2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant supplier 2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant supplier

Large Image :  2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant

Product Details:

Place of Origin: CHINA
Brand Name: HX
Certification: ISO9001, SGS
Model Number: HX-LQ

Payment & Shipping Terms:

Minimum Order Quantity: 1000 M
Price: negotiatiable
Packaging Details: plastic film or carton packing
Delivery Time: 15-20days upon 1* 20GP
Payment Terms: L/C, T/T
Supply Ability: 200000 Meter/ month
Contact Now
Detailed Product Description
Material: Galvanized Steel PVC Color: Black
Size: 2" Accessory: Cotton Wire
Packing QTY: Customizable Printing: Details As Customers'required

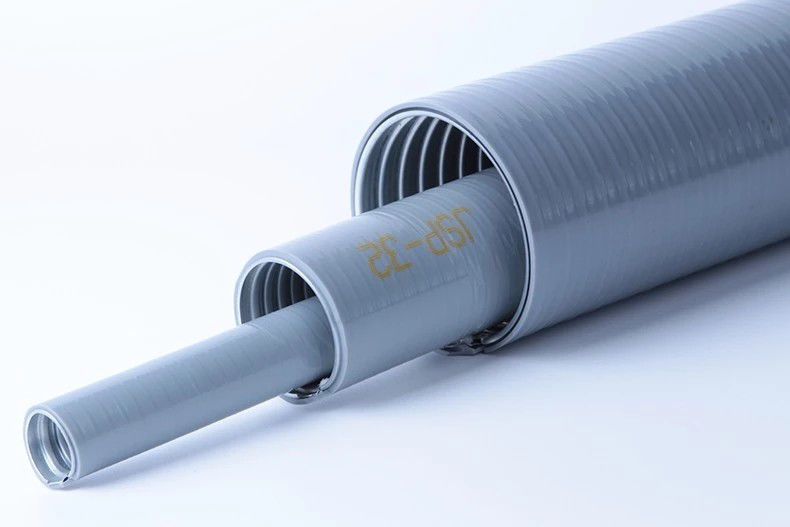

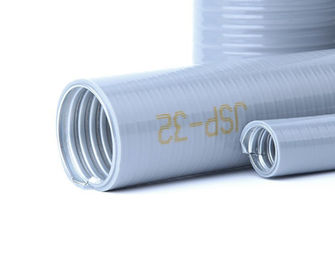

2" Liquid tight flexible conduit , JSB Steel liquid tight conduit

FEATURES:
1) Material: (inner layer) adopting galvanized steel band with special insulation treatment
(outer layer) adopting PVC raw material (anti-UV, anti-aging)
2) Working temperature:-10 °c ~+80°c
3) Long service life
4) Good mechanical protection
5) Good bending flexibility
6) The flexible pipes have extremely good waterproof, insulating and pull resistance.
7) The thickened surface is made of PVC. The surface is smooth. The PVC plastic is added with fire retarding agent.
8) The structure is buckle structure, which enhances the pull resistance and is not liable to crack or deform.





SIZE ID(mm) OD(mm) Bending
Radius (mm)
Lenght/roll m
MIN MAX MIN MAX
1/2" 15.8 16.2 20.8 21.3 85 50
3/4" 20.7 21.1 26.3 21.6 100 50
1" 6.2 26.8 32.7 33.4 150 50
11/4" 34.7 35.3 41.4 42.2 180 20
11/2" 40 40.7 47.4 48.3 220 20
2" 50.8 51.6 59.4 60.3 250 20
21/2" 63 63.6 72.1 73 300 10
3" 78 78.7 87.9 88.9 450 10
4" 101.6 102.6 113.2 114.3 600 5


2 Inch Liquid Tight Flexible Electrical Conduit Smooth PVC Coated Dust Resistant
