Waterproof 1 Inch EMT Fittings , IMC Conduit Fittings For Applications Above 600V

2000 PCS
MOQ
negotiatiable
Price
Waterproof 1 Inch EMT Fittings , IMC Conduit Fittings For Applications Above 600V
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Finish: Galvanized
Size: 1/2"-4"
Accessory: Steel Screw
High Light:

electrical conduit accessories

,

rigid steel conduit fittings

,

UL 1 Inch EMT Fittings

Basic Infomation
Place of Origin: YUYAO CHINA
Brand Name: HX
Certification: UL ,ISO9001, SGS
Model Number: HX-SSCP-S
Payment & Shipping Terms
Packaging Details: Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet ( customers' packing requiement accepted )
Delivery Time: 15 -20 Days upon 1*20GP
Payment Terms: L/C, T/T
Supply Ability: 200 Ton / Month
Product Description

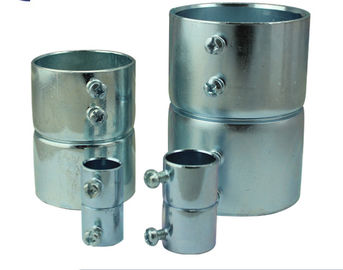

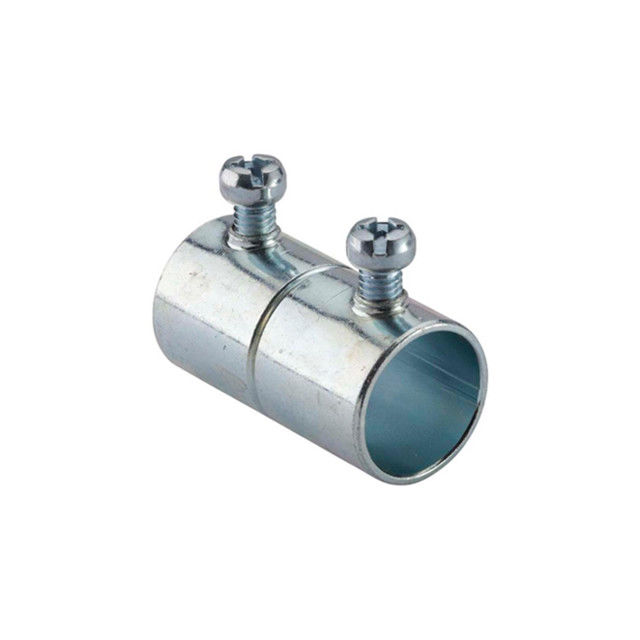

1" EMT fittings , EMT coupling steel , steel EMT coupling set screw type





The EMT fitting series is designed to provide solutions to connect steel EMT conduit to boxes and enclosures in commercial applications offered in various sizes and application types with ferrule compression or set screw providing ground continuity. It is made of steel galvanized.



Features:
- Steel
- Zinc Electro-Plated
- Concrete-Tight when Taped
- Suitable for applications above 600V
- Sizes 21/2" to 4" are also listed for RIGID and IMC Conduits



Waterproof 1 Inch EMT Fittings , IMC Conduit Fittings For Applications Above 600V 0

Cat# Size D D2 L
SSCP-S -050 1/2" 18.5 21.5 45
SSCP-S -075 3/4" 24 27 63
SSCP-S -100 1" 30.2 34.2 61
SSCP-S -125 11/4" 39 43 72
SSCP-S -150 11/2" 44.8 48.8 83
SSCP-S -200 2" 56.5 60.5 95
SSCP-S -250 21/2" 74 80 109
SSCP-S -300 3" 90.5 96.5 114
SSCP-S -400 4" 115.5 121.5 124
