UL listed Liquid Tight Connectors straight , Liquid Tight Connector for flexible conduit

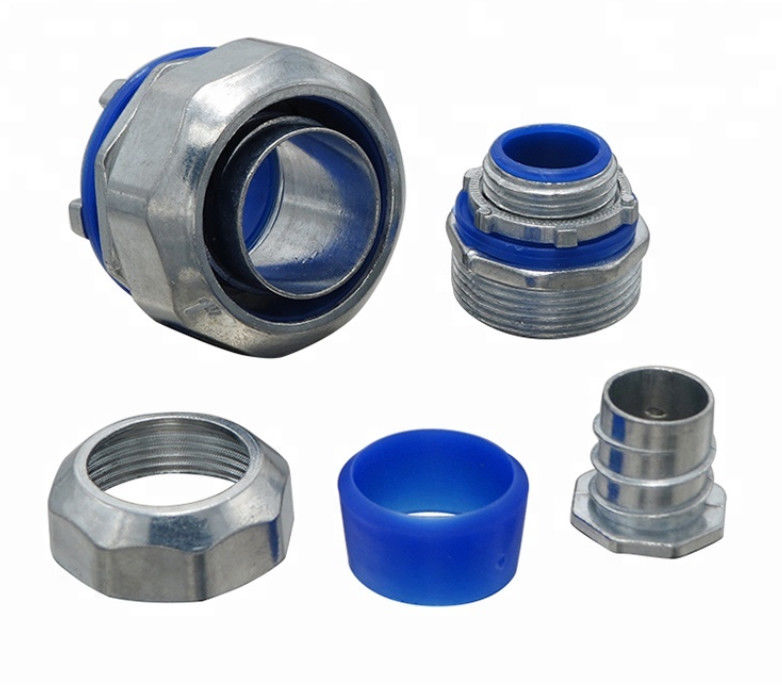

Liquid Tight Connector for flexible conduit
1. Material: zinc alloy
2. Quality: meet UL standard
3. Size: 1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",3-1/2",4",etc
4.T echnics: zinc die casting
5. Thickness: standard or make as you need
6. Usage: Liquid Tight Angle connector is used to connect flexible conduit.

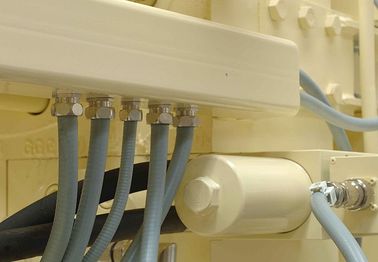

USE:Straight liquid-tight connectors are used to terminate and seal Liquid-Tight Flexible Metal and Liquid-Tight Flexible Nonmetallic Type B Conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure.Connectors can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.
Furnished with Sealing Ring.
Suitable for Grounding
| Cat# | Size | d1 | d2 | L | |
| LTS | -012 | 3/8" | 16.5 | G1/2" | 17 |
| LTS | -050 | 1/2" | 18.5 | G1/2" | 19 |
| LTS | -075 | 3/4" | 24 | G3/4" | 23.3 |
| LTS | -100 | 1" | 30 | G1" | 25 |
| LTS | -125 | 11/4" | 38.8 | G11/4" | 34 |
| LTS | -150 | 11/2" | 45 | G11/2" | 36.2 |
| LTS | -200 | 2" | 56.4 | G2" | 43 |
| LTS | -250 | 21/2" | 74 | G21/2" | 74 |
| LTS | -300 | 3" | 90 | G3" | 85 |
| LTS | -400 | 4" | 115 | G4" | 9 |
