JSB Liquid Tight Flexible Electrical Conduit For Outdoor Use Excellent Waterproof

1000 M
MOQ
negotiatiable
Price
JSB Liquid Tight Flexible Electrical Conduit For Outdoor Use Excellent Waterproof
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Galvanized Steel
PVC Color: Black Or Grey
Size: 3/8"-4"
Printing: Words Printing As Customers'required
Packing: 50M-10M
Accessory: Cotton Wire Inside
High Light:

flexible wire conduit

,

outdoor electrical wire conduit

Basic Infomation
Place of Origin: CHINA
Brand Name: HX
Certification: ISO9001, SGS
Model Number: HX-LQ
Payment & Shipping Terms
Packaging Details: plastic film or carton packing
Delivery Time: 15-20days upon 1* 20GP
Payment Terms: L/C, T/T
Supply Ability: 200000 Meter/ month
Product Description

Liquid Tight Flexible Metal Conduit , JSB liquid tight conduit



Liquid-tight Smooth PVC Coated Metal Conduit
Product material:
(inner layer) adopting hot-dipped galvanized steel band with special anticorrosion treatment ;(outer layer) adopting PVC raw material (anti-UV, anti-aging).
Working temperature:
-10℃ ~ +80℃,instantaneously can be +100℃,can be customized high temperature and low temperature resistant products.
Certification:
RoHS,CE,flame retardant certification FV-0.
Color:
Black,Grey
Property:
1, excellent waterproof ,insulation and tensile strength;
2, PVC surface thickened layer, smooth appearance ,and with flame retardant;
3, Square locked structure increase the tensile strength,not easily broken or deformed;
4, internal smooth structure is very easy for the entry of wire and cable.
Usage:
protecting wires/cables and provide insulation and waterproof performance.
Application:
widely used in robots,aerospace,power generation,high-speed rail subway,railway equipment, shipbuilding,chemical industry,communication system,engineering equipment installation,industrial automation equipment,machine tool equipment,lighting equipment,electrical insulation protection system of indoor and outdoor environment of wire and cable protection.
How to use:
Put the wires/cables through conduit before matching the correspondent type of LNE-DPJ connectors.

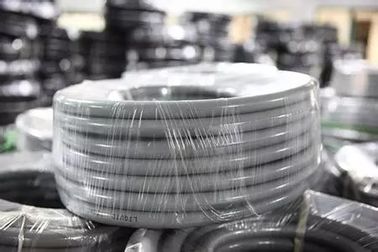

JSB Liquid Tight Flexible Electrical Conduit For Outdoor Use Excellent Waterproof 0

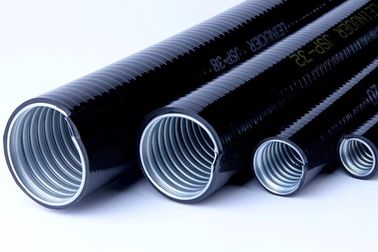

JSB Liquid Tight Flexible Electrical Conduit For Outdoor Use Excellent Waterproof 1

SIZE ID(mm) OD(mm) Bending
Radius (mm)
Lenght/roll m
MIN MAX MIN MAX
1/2" 15.8 16.2 20.8 21.3 85 50
3/4" 20.7 21.1 26.3 21.6 100 50
1" 6.2 26.8 32.7 33.4 150 50
11/4" 34.7 35.3 41.4 42.2 180 20
11/2" 40 40.7 47.4 48.3 220 20
2" 50.8 51.6 59.4 60.3 250 20
21/2" 63 63.6 72.1 73 300 10
3" 78 78.7 87.9 88.9 450 10
4" 101.6 102.6 113.2 114.3 600 5
