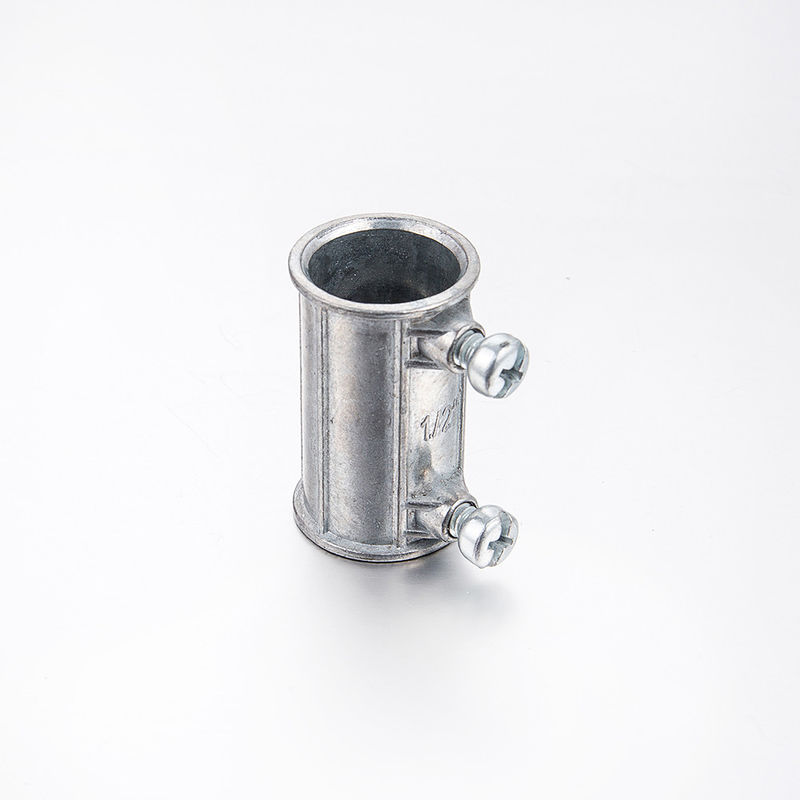

1/2" EMT coupling , EMT coupling set screw type , zinc die casting
zinc die-cast set-screw electrical couplings are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, set-screw couplings are of excellent corrosion protection with zinc electroplated. EMT set-screw couplings are made with a diverse combination screw head that can securely fasten conduit to designated electrical junction box or enclosure using a slotted Phillips, or Robertson head screw driver.
Features:
- Zinc Die Cast
- Concrete-Tight when taped
- Combo Head Set-Screw
- Suitable for applications above 600V
- Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits
| Cat# | Size | d1 | d2 | L | |
| SSCP-Z | -050 | 1/2" | 18.4 | 17 | 38 |
| SSCP-Z | -075 | 3/4" | 24 | 22 | 43 |
| SSCP-Z | -100 | 1" | 30 | 28 | 52 |
| SSCP-Z | -125 | 11/4" | 38.8 | 37 | 62 |
| SSCP-Z | -150 | 11/2" | 45 | 43 | 72.8 |
| SSCP-Z | -200 | 21/2" | 56.3 | 54.7 | 86 |
| SSCP-Z | -250 | 2" | 74 | 70 | 100 |
| SSCP-Z | -300 | 3" | 90 | 86 | 114 |
| SSCP-Z | -400 | 4" | 115 | 110 | 130 |
