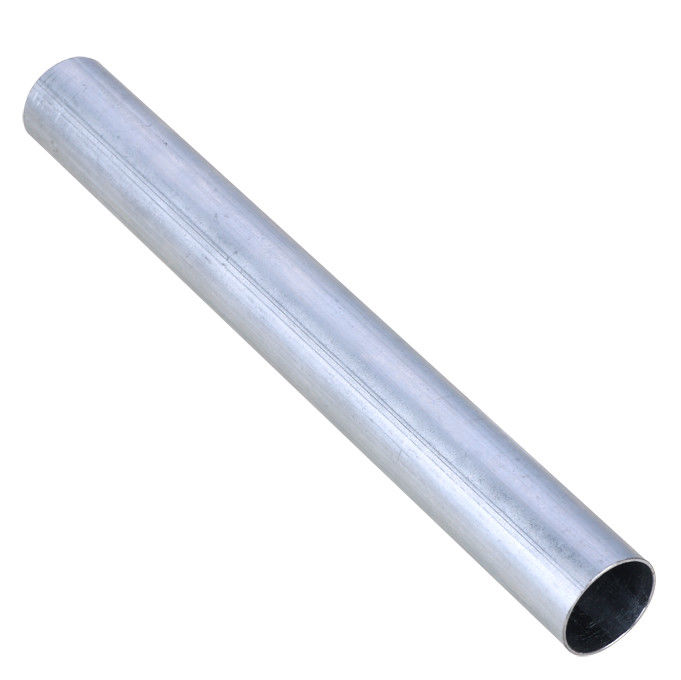

UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval

Certification
Good quality EMT Conduit Fittings for sales
Good quality EMT Conduit Fittings for sales
I'm Online Chat Now

UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval

China UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval supplier
UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval supplier UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval supplier

Large Image :  UL797 Standard EMT Thin Wall Conduit , Electrical Rigid Metal Conduit SGS Approval

Product Details:

Place of Origin: CHINA
Brand Name: HX
Certification: ISO9001, SGS
Model Number: HX-EMT

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: negotiable
Packaging Details: BUNDDLES AS CUSTOMERS' REQUIREMENT
Delivery Time: 20 days upon 1* 20GP
Payment Terms: L/C, T/T
Supply Ability: 200 TON / Month
Contact Now
Detailed Product Description
Material: Q195 Q235 Finish: Hot-dip Gal. Or Pre-Gal.
Size: 1/2"-4" Packing: Customers'requirement Accepted
Thickness: 0.7mm-2.1mm Length: 10'/3.05m

EMT conduit UL797 Standard type/ Galvanized Steel BS4568 Conduit / GI PIPE

Application:Used as an unthreaded steel raceway for protection and routing of electrical wiring
EMT Conduit is manufactured in accordance with UL797 / ANSI C80.3.
It's unthreaded, circular cross-section, for protecting cables and wires.

1)  Surface Treatment: Pre-galvanized, Hot-dip galvanized(HDG)
2)  Size: 1/2" to 4"
3)  Standard: ANSI C80.3,UL797
4)  Application: EMT Conduit can be used as structure pipe for through electrical wiring
5)  Feature: Surface treatment is smooth, have good resistant to corrosion,and all information available at the time of order,if you need different thickness or length please contact us.



 Standard Type

Norminal Trade SizeOutside DiameterWall ThicknessLength
CAT#U.S.Metricinchmminchmmmmmm
EMT-0501/2"160.70617.930.0421.0730003050
EMT-0753/4"210.92223.420.0491.2530003050
EMT-1001"271.16329.540.0571.4530003050
EMT-1251-1/4"351.51038.350.0651.6530003050
EMT-1501-1/2"411.74044.200.0651.6530003050
EMT-2002"532.19755.800.0651.6530003050
EMT-2502-1/2"632.87573.030.0721.8330003050
EMT-3003"783.50088.900.0721.8330003050
EMT-3503-1/2"914.000101.600.0832.1130003050
EMT-4004"1034.500114.300.0832.1130003050


 Economy Type


Norminal Trade SizeOutside DiameterWall ThicknessLength
CAT#U.S.Metricinchmminchmmmmmm
EMT-050T1/2"160.70617.930.0310.8030003050
EMT-075T3/4"210.92223.420.0350.9030003050
EMT-100T1"271.16329.540.0391.0030003050
EMT-125T1-1/4"351.51038.350.0511.3030003050
EMT-150T1-1/2"411.74044.200.0511.3030003050
EMT-200T2"532.19755.800.0551.4030003050
