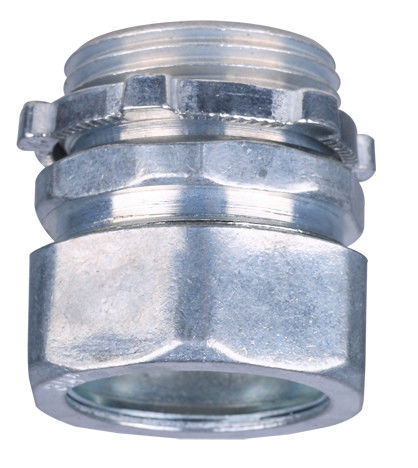

Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight

China Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight supplier
Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight supplier Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight supplier

Large Image :  Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight

Product Details:

Place of Origin: YUYAO CHINA
Brand Name: HX
Certification: UL ,ISO9001, SGS
Model Number: HX-CCN

Payment & Shipping Terms:

Minimum Order Quantity: 2000 PCS
Price: negotiatiable
Packaging Details: Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet (customers' packing requiement accepted )
Delivery Time: 15 -20 Days upon 1*20GP
Payment Terms: L/C, T/T
Supply Ability: 200 Ton / Month
Contact Now
Detailed Product Description
Material: ZINC Finish: POLISH
Size: 1/2"-2" Type: Insulated Or Not
Insulated: Yellow Color Accessory: Steel Cap

Zinc die casting EMT connector compression type, EMT compression connector



Description:
zinc die casting compression connectors are used to bond EMT thinwall conduits to electrical junction boxes or enclosures. In damp locations, compression connectors are also of excellent corrosion protection with zinc electroplated. With labor saving design, electricians can quickly tighten these connectors on EMT conduits.


Features:
- Zinc Die Cast
- Concrete-Tight
- Suitable for applications above 600V
- Compression Cap color may vary

          Thinwall EMT Conduit Fittings EMT To Rigid Compression Coupling Concrete Tight

Cat# Size d1 d2 L
CCN-Z -050 1/2" G1/2" 18 35
CCN-Z -075 3/4" G3/4" 24 35
CCN-Z -100 1" G1" 30 40
CCN-Z -125 11/4" G11/4" 39 45
CCN-Z -150 11/2" G11/2" 45 50
CCN-Z -200 2" G2" 56.5 55
