Straight Metal Squeeze Connector Electrical Conduit Joints UL / SGS Certification
2000 pcs
MOQ
negotiatiable
Price
Straight  Metal Squeeze Connector Electrical Conduit Joints UL / SGS Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HX
Certification: UL E345464
Model Number: BX
High Light:

liquid tight flexible conduit fittings

,

flexible metal conduit coupling

Payment & Shipping Terms
Packaging Details: Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet (customers' packing requiement accepted )
Delivery Time: within 15 days upon 20 GP
Supply Ability: 150 Ton/Month
Specifications
Products:: BX Squeeze Connector
Material:: Zinc Die Casting
Size:: 3/8“-4””
Surface:: Polish
Type: Flexible Conduits Connector
Certification: UL,SGS
Product Description

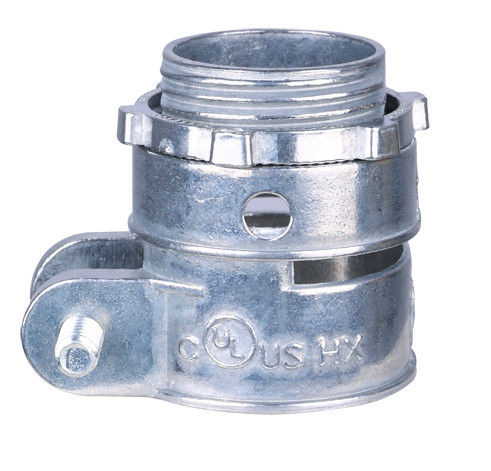

Squeeze Connector, BX Squeeze Connector, Zinc Die Cast Flexible Metal Conduit Squeeze Connector



Flexible Metal Conduit Fittings are used to bond metal clad cables & conduits to electrical junction boxes & enclosures. Combination fittings allow the installer to easily join flexible metal conduits to EMT, Rigid or Liquid Tight Conduits. These Fittings are offered in both 90 degree or straight profiles and can be bonded using built in set screws, squeeze clamps, screw threads, or saddle mount devices. These connectors accommodate flexible metal conduits from 1/2" to 4".

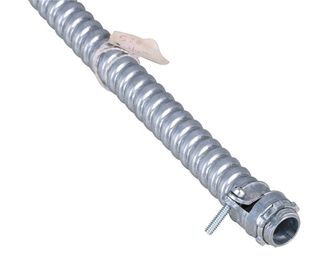

Squeeze Connectors - Straight
Application:
These squeeze-type connectors with insulated throats are used in dry locations to bond flexible metal conduits to boxes or enclosures.



Straight  Metal Squeeze Connector Electrical Conduit Joints UL / SGS Certification 0

Cat# Size A B C D
BX -50 1/2" 30.3 28.5 26.3 16.0
BX -75 3/4" 35.6 32.6 30.3 21.2
BX -100 1" 38.9 40.0 37.0 27.0
BX -125 11/4" 44.0 46.2 44.0 35.0
BX -150 11/2" 48.5 54.2 51.2 40.6
BX -200 2" 52.5 66.8 65.0 52.6
BX -250 21/2" 71.0 84.0 81.0 64.0
BX -300 3" 81.0 99.0 95.0 80.0
BX -400 4" 100.0 123.0 119.0 104.0
