Plastic Electrical Conduit Fittings , Flexible Electrical Conduit Connectors
2000 pcs
MOQ
negotiatiable
Price
Plastic Electrical Conduit Fittings , Flexible Electrical Conduit Connectors
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HX
Certification: UL E345464
Model Number: LTS
High Light:

liquid tight flexible conduit fittings

,

flexible metal conduit coupling

Payment & Shipping Terms
Packaging Details: Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet (customers' packing requiement accepted )
Delivery Time: within 15 days upon 20 GP
Supply Ability: 150 Ton/Month
Specifications
Products:: Liquid Tight Connector
Material:: Zinc Die Casting
Size:: 3/8“-4””
Color: Yellow
Surface:: Polish
Accessory:: Plastic
Product Description

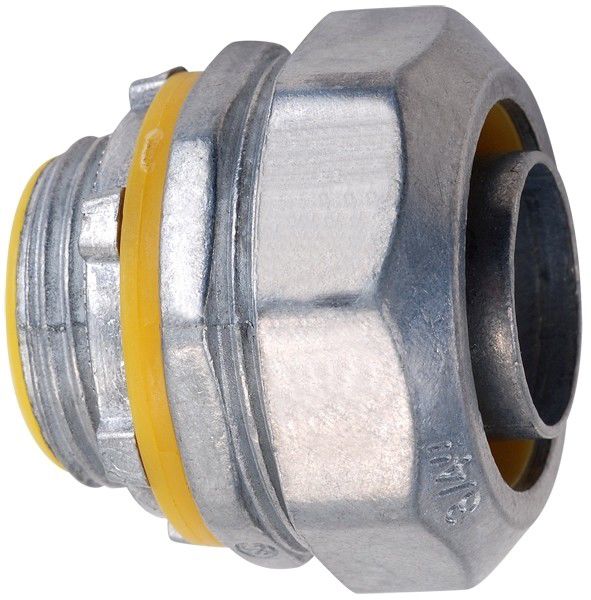

Liquid tight connecotr Yellow , Straight Flexible Conduit And Fittings Liquid Tight Connector



UL LISTED Straight liquid -tight connectors are used to terminate and seal liquid-tight flexible metal and liquid -tight flexible Nonmetallic Type B conduits to either an oil-tight,liquid-tight or rain-tight box or enclosure,connector can be used with tapered thread female entry or unthreaded knock-out using the provided sealing washer and locknut.



1) liquid tight angle connector
2) Liquid Tight Connector 90 angle
3) Full range size from 3/8" to 4"

· Liquid tight angle connector
· Available size: 3/8 inch to 4 inch
· Zinc Die Casting
· For use with both metallic liquid tight conduit and nonmetallic liquid tight conduit
· Furnished with locknut and sealing ring
· Yellow and Blue two kinds of gasket available

Plastic Electrical Conduit Fittings , Flexible Electrical Conduit Connectors 0



Cat# Size d1 d2 L
LTS -012 3/8" 16.5 G1/2" 17
LTS -050 1/2" 18.5 G1/2" 19
LTS -075 3/4" 24 G3/4" 23.3
LTS -100 1" 30 G1" 25
LTS -125 11/4" 38.8 G11/4" 34
LTS -150 11/2" 45 G11/2" 36.2
LTS -200 2" 56.4 G2" 43
LTS -250 21/2" 74 G21/2" 74
LTS -300 3" 90 G3" 85
LTS -400 4" 115 G4" 9



Plastic Electrical Conduit Fittings , Flexible Electrical Conduit Connectors 1
